Pex-B

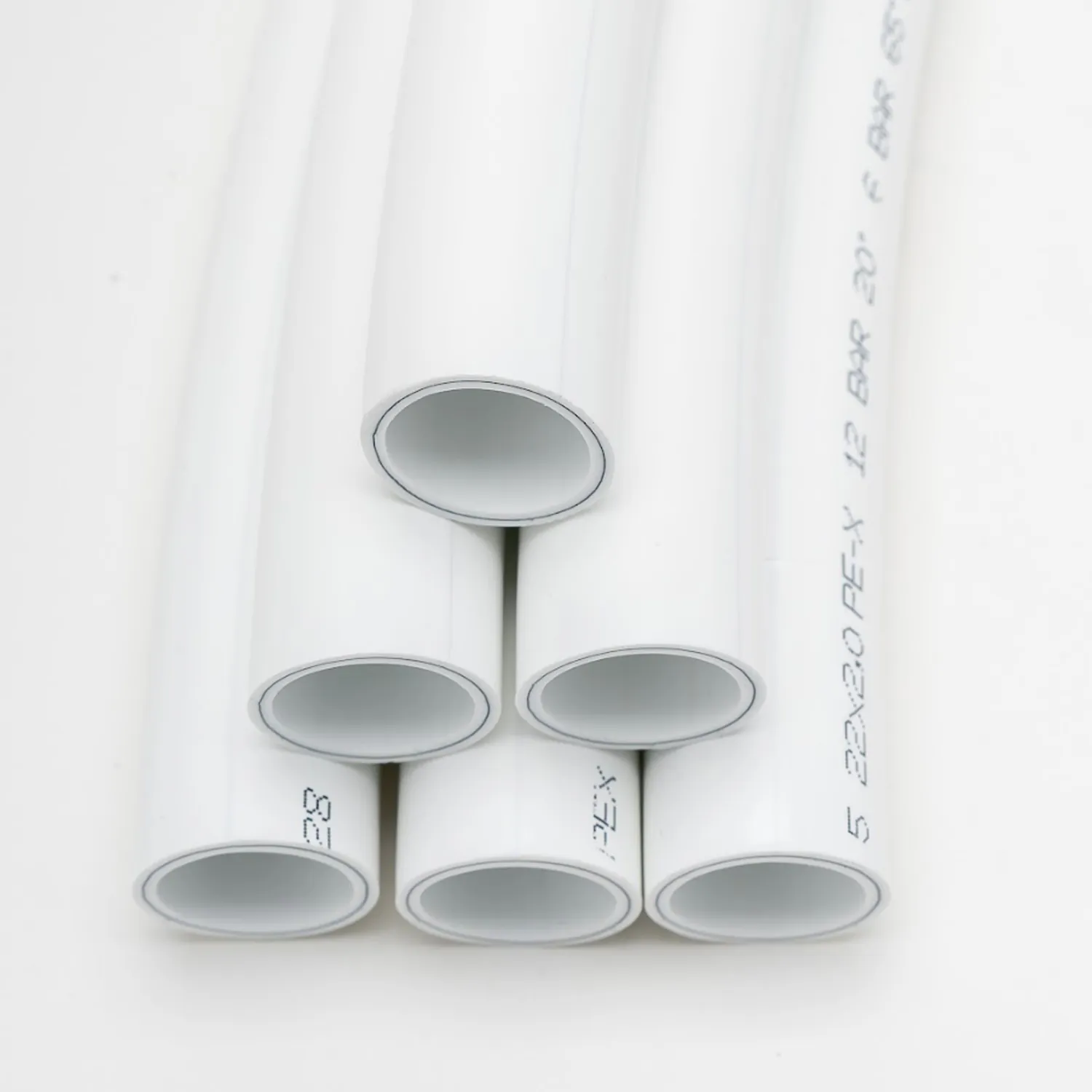

MODUS PEX-b PIPE SYSTEM

Modus manufactures PEX-b (cross-linked polyethylene) pipes, designed to provide maximum performance and reliability in water distribution and heating systems. These pipes are manufactured from high-density polyethylene (HDPE) cross-linked using a silane (moisture-cure) process. This specialized production process provides the pipe with exceptional temperature resistance, flexibility, and longevity.

Materials and Production Technology

Modus PEX-b pipes are produced using a special cross-linking technology. This technology allows:
- High temperature resistance is achieved (continuous operation up to 95 °C)
- Increases resistance to deformation under pressure
- Chemical and mechanical resistance is maintained for many years
- Pipes can be produced with or without a barrier against oxygen diffusion in accordance with the DIN 4726 standard.

Technical Specifications

Feature	Value
Diameter Ranges	Ø16 mm – Ø32 mm
Maximum Operating Temperature	95 °C
Nominal Compressive Strength	10 bars
Material	PEX-b (PE cross-linked by silane method)
Production Standard	ISO 15875 / DIN 4726
Bend Radius	Minimum 8 times the outer diameter
Color Options	Natural, white, red or blue
Production Method	200 m, 500 m, 600 m coil

Advantages

- Easy installation and quick application thanks to its flexible structure
- High temperature and pressure resistant, long-lasting use
- Internal surface resistant to corrosion, lime and chemicals
- Quiet water flow and low pressure loss
- Ideal solution for underfloor heating and plumbing systems

Areas of Use

- Hot and cold drinking water systems
- Underfloor heating and radiant heating systems
- Air conditioning and cooling installations
- Industrial liquid transfer systems

Quality and Trust

Each Modus PEX-b pipe is tested for dimensional accuracy, tensile strength, thermal stability, and oxygen permeability before leaving the production line. Modus' quality management system is implemented in accordance with ISO 9001. Full traceability is ensured throughout the production process, and every batch undergoes laboratory validation.

Conclusion

Modus PEX-b piping systems ensure longevity, energy efficiency, and safe water transport in modern building infrastructures. Manufactured with Modus quality, PEX-b pipes offer users durability, aesthetics, and technology in one place in hot and cold water applications, heating systems, and industrial lines.
