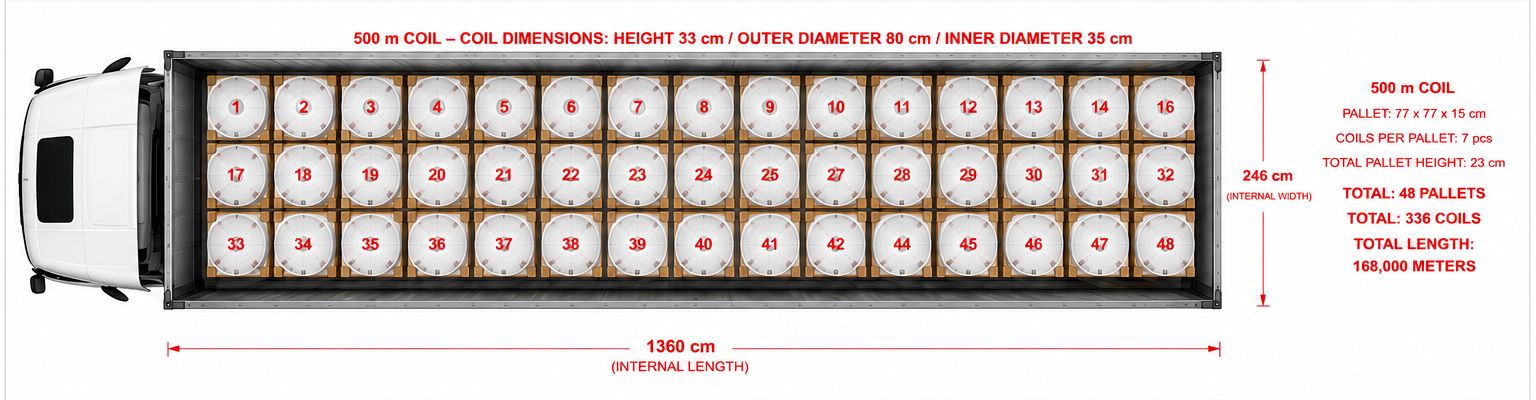

16x2 mm PEX-a PIPES — 500 m COILS — LOADING PLAN (TOP VIEW) — 48 PALLETS / 168,000 METERS
16x2 mm PEX-a PIPES — 500 m COILS — LOADING PLAN (TOP VIEW) — 48 PALLETS / 168,000 METERS
LOAD DISTRIBUTION (TOP VIEW)
Pallets per row (across width)
3 pallets
Rows along length
16 rows
Total pallets
48 pallets
Coils per pallet
7 coils
Total coils
336 coils
Coil length
500 meters
TOTAL LOADED LENGTH
168,000 meters
COIL SPECIFICATIONS
Coil inner diameter
35 cm
Coil outer diameter
80 cm
Coil width (height)
33 cm
Coil length
500 meters
Pipe
16x2 mm PEX-a
Coil weight (500 m x 0.088 kg/m)
44.00 kg
Coils per pallet
7 pcs
PALLET SPECIFICATIONS
Pallet size (L x W x H)
77 x 77 x 15 cm
Coils per pallet
7 pcs
Coil height (per coil)
33 cm
Coils height (7 x 33 cm)
231 cm
Pallet height
15 cm
TOTAL PALLET HEIGHT
246 cm
WEIGHT CALCULATION
Pipe weight per meter
0.088 kg/m
Total pipe length
168,000 m
Total pipe weight
14,784.00 kg
Coil weight (500 m x 0.088 kg/m)
44.00 kg
Pallet weight (7 coils x 44.00 kg)
308.00 kg
Pallet weight (pallet only)
7.00 kg
TOTAL NET WEIGHT
14,784.00 kg
Estimated packaging (stretch + bag)
≈ 420 kg
TOTAL GROSS WEIGHT
≈ 15,204 – 15,400 kg
SUMMARY
Total pallets
48 pallets
Total coils
336 coils
Coil length
500 meters
Total loaded length
168,000 meters
Truck internal length
1360 cm
Truck internal width
246 cm
Truck internal height
275 cm
TOTAL PALLET HEIGHT
246 cm
PACKAGING OPTIONS (WRAPPING)
BLACK STRETCH
black stretch pallet photo
WHITE STRETCH
white stretch pallet photo
CLEAR STRETCH
clear stretch pallet photo
CLEAR STRETCH + BAG
clear stretch + bag photo
KARTON KUTU + ŞEFFAF STRETCH (SADE)
carton box photo
NOTES
  • Loading capacity: 48 pallets (3 pallets across x 16 rows along length)
  • Each pallet contains 7 coils of 500 meters
  • Total loaded length: 168,000 meters of 16x2 mm PEX-a pipes
  • All dimensions are approximate and may vary slightly depending on production tolerances.
LOADING PHOTOS

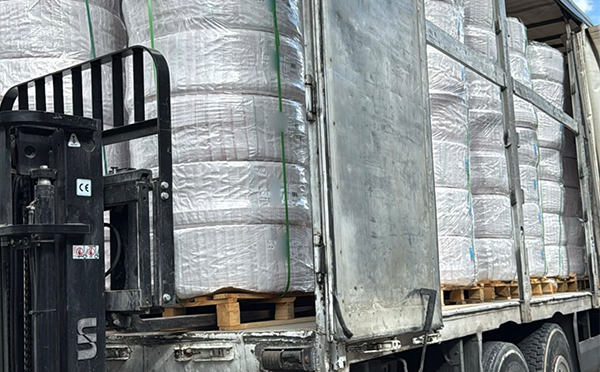

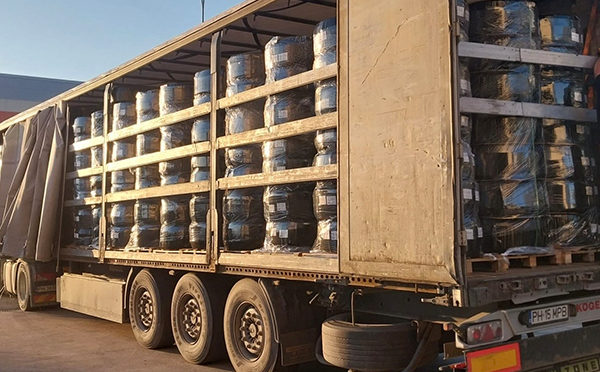

loading photo 1 — truck interior
LOADED PALLETS — REAR VIEW

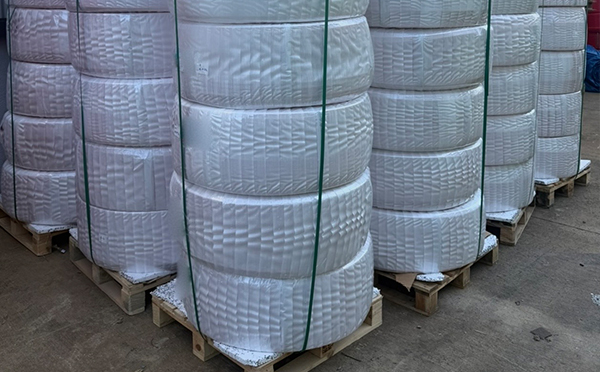

loading photo 2 — pallet rows
PALLET ROWS ALONG LENGTH

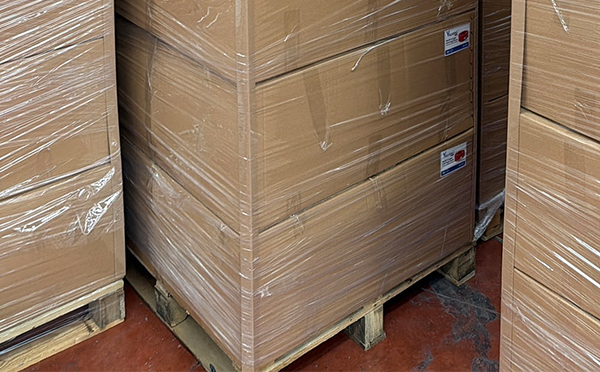

loading photo 3 — full load
COMPLETED LOAD — 48 PALLETS

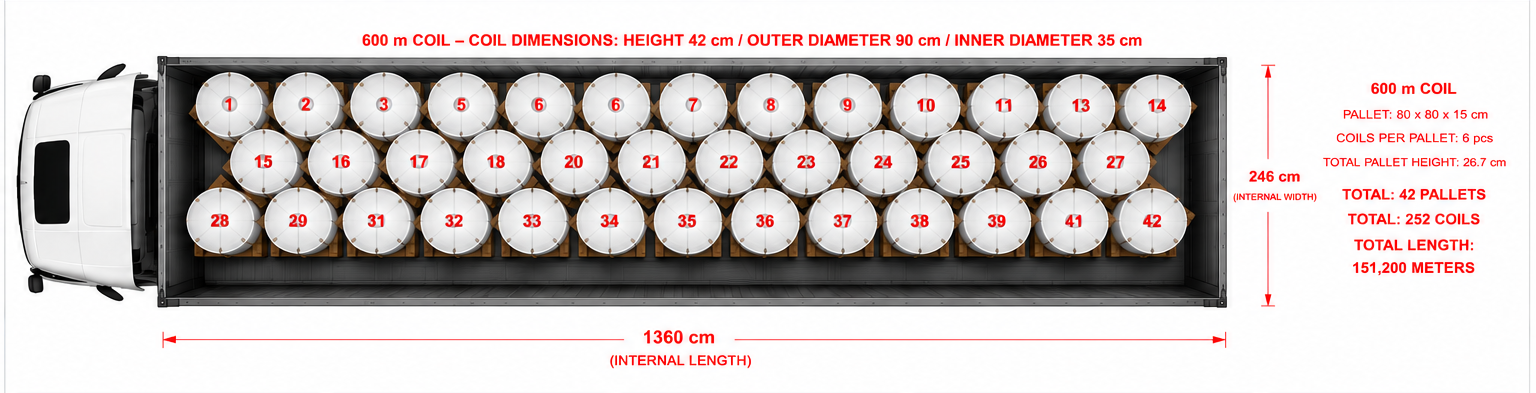

17x2 mm PEX-a & PE-RT PIPES — 600 m COILS — LOADING PLAN (TOP VIEW) — 42 PALLETS / 151,200 METERS
17x2 mm PEX-a & PE-RT PIPES — 600 m COILS — LOADING PLAN (TOP VIEW) — 42 PALLETS / 151,200 METERS
LOAD DISTRIBUTION (TOP VIEW)
Pallets per row (across width)
3 pallets (crisscross)
Rows along length
14 rows
Total pallets
42 pallets
Coils per pallet
6 coils
Total coils
252 coils
Coil length
600 meters
TOTAL LOADED LENGTH
151,200 meters
COIL SPECIFICATIONS
Coil inner diameter
35 cm
Coil outer diameter
90 cm
Coil width (height)
42 cm
Coil length
600 meters
Pipe
17x2 mm PEX-a
17x2 mm PE-RT
Coil weight (600 m x 0.096 kg/m)
57.60 kg
Coils per pallet
6 pcs
PALLET SPECIFICATIONS
Pallet size (L x W x H)
80 x 80 x 15 cm
Coils per pallet
6 pcs
Coil height (per coil)
42 cm
Coils height (6 x 42 cm)
252 cm
Pallet height
15 cm
TOTAL PALLET HEIGHT
267 cm
WEIGHT CALCULATION
Pipe weight per meter
0.096 kg/m
Total pipe length
151,200 m
Total pipe weight
14,515.20 kg
Coil weight (600 m x 0.096 kg/m)
57.60 kg
Pallet weight (6 coils x 57.60 kg)
345.60 kg
Pallet weight (pallet only)
7.00 kg
TOTAL NET WEIGHT
14,867.20 kg
Estimated packaging (stretch + bag)
≈ 500 kg
TOTAL GROSS WEIGHT
≈ 15,367 – 15,700 kg
SUMMARY
Total pallets
42 pallets
Total coils
252 coils
Coil length
600 meters
Total loaded length
151,200 meters
Truck internal length
1360 cm
Truck internal width
246 cm
Truck internal height
270 cm
TOTAL PALLET HEIGHT
267 cm
PACKAGING OPTIONS (WRAPPING)
BLACK STRETCH
black stretch pallet photo
WHITE STRETCH
white stretch pallet photo
CLEAR STRETCH
clear stretch pallet photo
CLEAR STRETCH + BAG
clear stretch + bag photo
KARTON KUTU + ŞEFFAF STRETCH (SADE)
carton box photo
NOTES
  • Loading capacity: 42 pallets (3 pallets across x 14 rows along length)
  • Each pallet contains 6 coils of 600 meters
  • Total loaded length: 151,200 meters of 17x2 mm PEX-a & PE-RT pipes
  • All dimensions are approximate and may vary slightly depending on production tolerances.
  • Packaging options: black stretch, white stretch, clear stretch or clear stretch with bag.
LOADING PHOTOS
loading photo 1 — truck interior
LOADED PALLETS — REAR VIEW

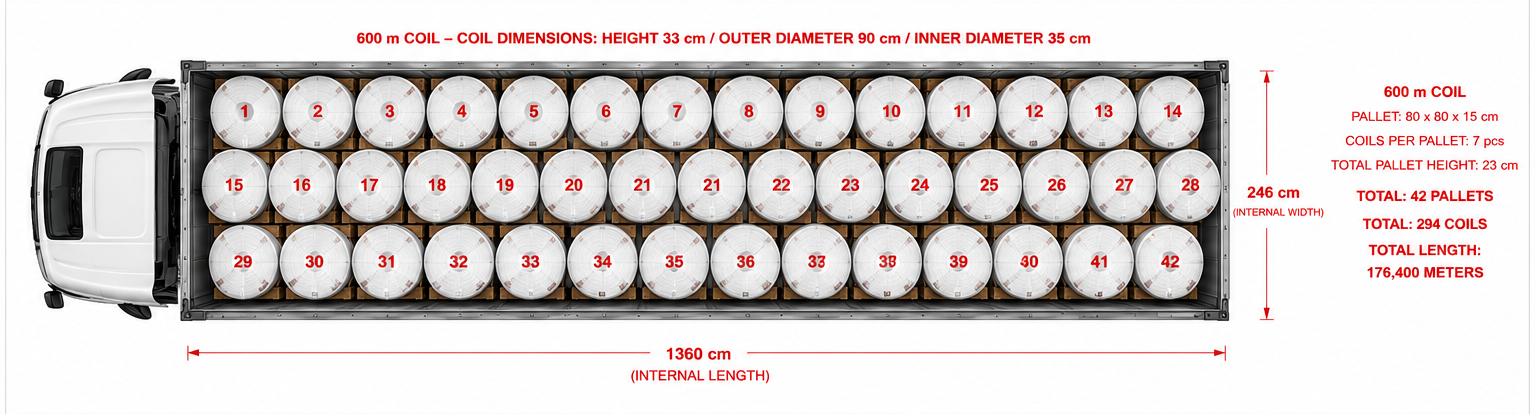

16x2 mm PE-RT & PEX-a PIPES — 600 m COILS — LOADING PLAN (TOP VIEW) — 42 PALLETS / 176,400 METERS
16x2 mm PE-RT & PEX-a PIPES — 600 m COILS — LOADING PLAN (TOP VIEW) — 42 PALLETS / 176,400 METERS
LOAD DISTRIBUTION (TOP VIEW)
Pallets per row (across width)
7 pallets
Rows along length
6 rows
Total pallets
42 pallets
Coils per pallet
7 coils
Total coils
294 coils
Coil length
600 meters
TOTAL LOADED LENGTH
176,400 meters
COIL SPECIFICATIONS
Coil inner diameter
35 cm
Coil outer diameter
90 cm
Coil width (height)
33 cm
Coil length
600 meters
Pipe
16x2 mm PE-RT & PEX-a
Coil weight (600 m x 0.088 kg/m)
52.80 kg
Coils per pallet
7 pcs
PALLET SPECIFICATIONS
Pallet size (L x W x H)
80 x 80 x 15 cm
Coils per pallet
7 pcs
Coil height (per coil)
33 cm
Coils height (7 x 33 cm)
231 cm
Pallet height
15 cm
TOTAL PALLET HEIGHT
246 cm
WEIGHT CALCULATION
Pipe weight per meter
0.088 kg/m
Total pipe length
176,400 m
Total pipe weight
15,523.20 kg
Coil weight (600 m x 0.088 kg/m)
52.80 kg
Pallet weight (7 coils x 52.80 kg)
369.60 kg
Pallet weight (pallet only)
7.00 kg
TOTAL NET WEIGHT
15,523.20 kg
Estimated packaging (stretch + bag)
≈ 420 kg
TOTAL GROSS WEIGHT
≈ 15,943 – 16,200 kg
SUMMARY
Total pallets
42 pallets
Total coils
294 coils
Coil length
600 meters
Total loaded length
176,400 meters
Truck internal length
1360 cm
Truck internal width
246 cm
Truck internal height
275 cm
TOTAL PALLET HEIGHT
246 cm
PACKAGING OPTIONS (WRAPPING)
BLACK STRETCH
black stretch pallet photo
WHITE STRETCH
white stretch pallet photo
CLEAR STRETCH
clear stretch pallet photo
CLEAR STRETCH + BAG
clear stretch + bag photo
KARTON KUTU + ŞEFFAF STRETCH (SADE)
carton box photo
NOTES
  • Loading capacity: 42 pallets (7 pallets across x 6 rows along length)
  • Each pallet contains 7 coils of 600 meters
  • Total loaded length: 176,400 meters of 16x2 mm PE-RT & PEX-a pipes
  • All dimensions are approximate and may vary slightly depending on production tolerances.
LOADING PHOTOS
loading photo 1 — truck interior
LOADED PALLETS — REAR VIEW
loading photo 2 — pallet rows
PALLET ROWS ALONG LENGTH

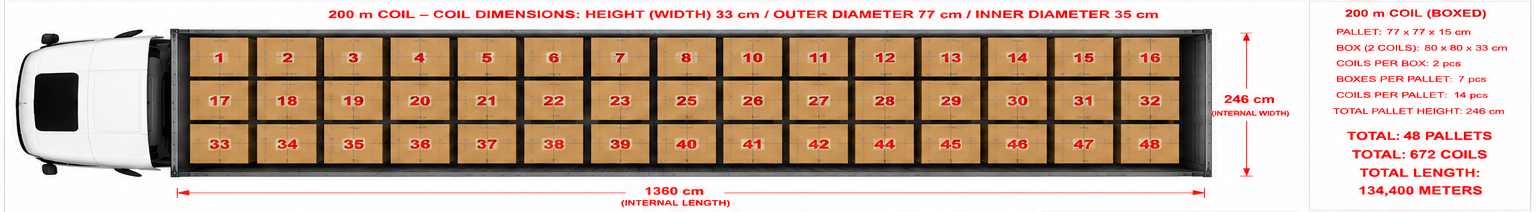

16x2 mm PEX-a & PE-RT PIPES — 200 m COILS — LOADING PLAN (TOP VIEW) — TRUCK 1360 x 246 x 270 cm — BOXED — 48 PALLETS / 134,400 METERS
16x2 mm PEX-a & PE-RT PIPES — 200 m COILS — LOADING PLAN (TOP VIEW) — TRUCK 1360 x 246 x 270 cm — BOXED — 48 PALLETS / 134,400 METERS
LOAD DISTRIBUTION (TOP VIEW)
Pallets per row (across width)
3 pallets
Rows along length
16 rows
Total pallets
48 pallets
Coils per pallet
14 coils
Total coils
672 coils
Coil length
200 meters
TOTAL LOADED LENGTH
134,400 meters
COIL SPECIFICATIONS
Coil inner diameter
35 cm
Coil outer diameter
77 cm
Coil width (height)
33 cm
Coil length
200 meters
Pipe
16x2 mm PEX-a
16x2 mm PE-RT
Coil weight (200 m x 0.088 kg/m)
17.60 kg
Coils per box
2 pcs
BOX SPECIFICATIONS
Box size (L x W x H)
80 x 80 x 33 cm
Coils per box
2 pcs
Box weight (2 coils x 17.60 kg)
35.20 kg
Boxes per pallet
7 pcs
Pallet height (incl. box)
246 cm
PALLET SPECIFICATIONS
Pallet size (L x W x H)
77 x 77 x 15 cm
Boxes per pallet
7 pcs
Coils per pallet
14 pcs
Pallet height (incl. box)
246 cm
TOTAL PALLET HEIGHT
246 cm
WEIGHT CALCULATION
Pipe weight per meter
0.088 kg/m
Total pipe length
134,400 m
Total pipe weight
11,827.20 kg
Coil weight (200 m x 0.088 kg/m)
17.60 kg
Pallet weight (14 coils x 17.60 kg)
246.40 kg
Pallet weight (pallet only)
7.00 kg
TOTAL NET WEIGHT
11,827.20 kg
Estimated packaging (boxes + stretch)
≈ 1,200 kg
TOTAL GROSS WEIGHT
≈ 13,027 – 13,200 kg
SUMMARY
Total pallets
48 pallets
Total coils
672 coils
Coil length
200 meters
Total loaded length
134,400 meters
Truck internal length
1360 cm
Truck internal width
246 cm
Truck internal height
270 cm
TOTAL PALLET HEIGHT
246 cm
PACKAGING OPTIONS (WRAPPING)
BLACK STRETCH
black stretch pallet photo
WHITE STRETCH
white stretch pallet photo
CLEAR STRETCH
clear stretch pallet photo
CLEAR STRETCH + BAG
clear stretch + bag photo
KARTON KUTU + ŞEFFAF STRETCH (SADE)
carton box photo
NOTES
  • Loading method (boxed): 3 pallets across width x 16 rows along length = 48 pallets.
  • Each box contains 2 coils of 200 meters.
  • Each pallet contains 7 boxes = 14 coils.
  • Total loaded length: 134,400 meters of 16x2 mm PEX-a & PE-RT pipes.
  • All dimensions are approximate and may vary slightly depending on production tolerances.
LOADING PHOTOS

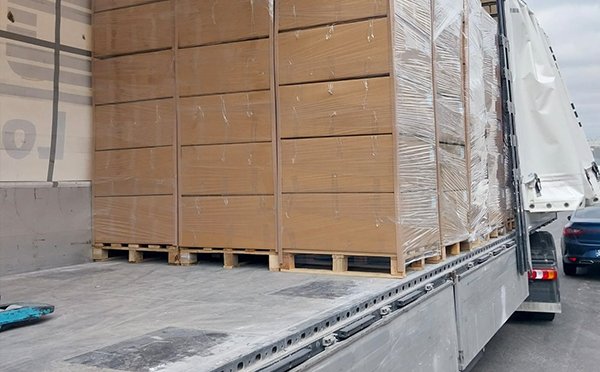

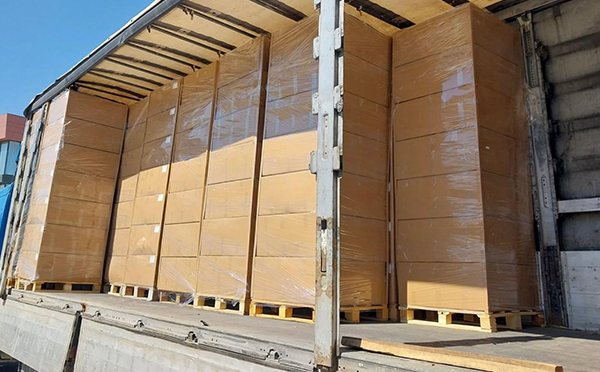

loading photo 1 — boxed pallets rear view
LOADED BOXED PALLETS — REAR VIEW

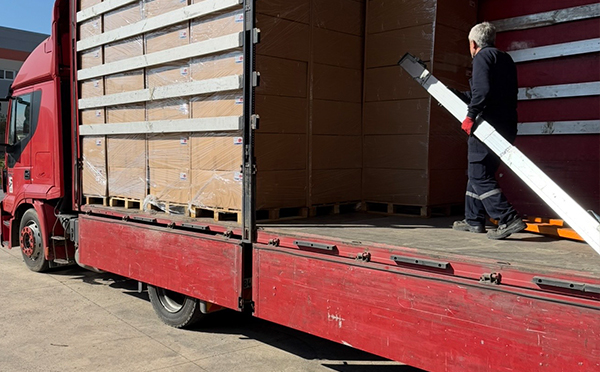

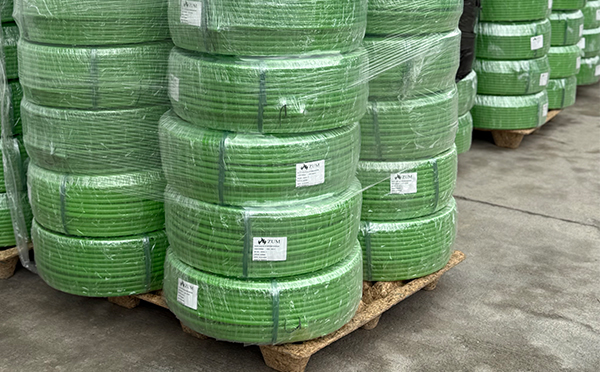

loading photo 2 — box rows
BOX ROWS ALONG LENGTH

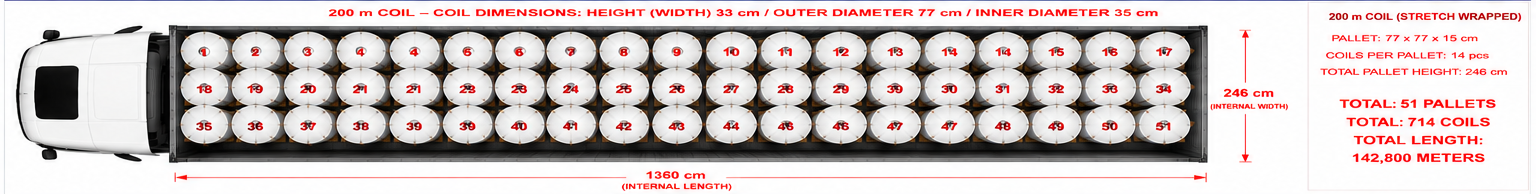

16x2 mm PEX-a & PE-RT PIPES — 200 m COILS — LOADING PLAN (TOP VIEW) — TRUCK 1360 x 246 x 270 cm — STRETCH WRAPPED — 51 PALLETS / 142,800 METERS
16x2 mm PEX-a & PE-RT PIPES — 200 m COILS — LOADING PLAN (TOP VIEW) — TRUCK 1360 x 246 x 270 cm — STRETCH WRAPPED — 51 PALLETS / 142,800 METERS
LOAD DISTRIBUTION (TOP VIEW)
Pallets per row (across width)
3 pallets
Rows along length
17 rows
Total pallets
51 pallets
Coils per pallet
14 coils
Total coils
714 coils
Coil length
200 meters
TOTAL LOADED LENGTH
142,800 meters
COIL SPECIFICATIONS
Coil inner diameter
35 cm
Coil outer diameter
77 cm
Coil width (height)
33 cm
Coil length
200 meters
Pipe
16x2 mm PEX-a
16x2 mm PE-RT
Coil weight (200 m x 0.088 kg/m)
17.60 kg
Coils per pallet
14 pcs
PALLET SPECIFICATIONS
Pallet size (L x W x H)
77 x 77 x 15 cm
Coils per pallet
14 pcs
Coil height (per coil)
33 cm
Pallet height (incl. coils)
246 cm
TOTAL PALLET HEIGHT
246 cm
WEIGHT CALCULATION
Pipe weight per meter
0.088 kg/m
Total pipe length
142,800 m
Total pipe weight
12,566.40 kg
Coil weight (200 m x 0.088 kg/m)
17.60 kg
Pallet weight (14 coils x 17.60 kg)
246.40 kg
Pallet weight (pallet only)
7.00 kg
TOTAL NET WEIGHT
12,566.40 kg
Estimated packaging (stretch)
≈ 1,000 kg
TOTAL GROSS WEIGHT
≈ 13,566 – 13,700 kg
SUMMARY
Total pallets
51 pallets
Total coils
714 coils
Coil length
200 meters
Total loaded length
142,800 meters
Truck internal length
1360 cm
Truck internal width
246 cm
Truck internal height
270 cm
TOTAL PALLET HEIGHT
246 cm
PACKAGING OPTIONS (WRAPPING)
BLACK STRETCH
black stretch pallet photo
WHITE STRETCH
white stretch pallet photo
CLEAR STRETCH
clear stretch pallet photo
CLEAR STRETCH + BAG
clear stretch + bag photo
KARTON KUTU + ŞEFFAF STRETCH (SADE)
carton box photo
NOTES
  • Loading method (stretch wrapped): 3 pallets across width x 17 rows along length = 51 pallets.
  • Each pallet contains 14 coils of 200 meters.
  • Total loaded length: 142,800 meters of 16x2 mm PEX-a & PE-RT pipes.
  • Stretch wrapping provides higher loading capacity compared to boxed packaging.
  • All dimensions are approximate and may vary slightly depending on production tolerances.

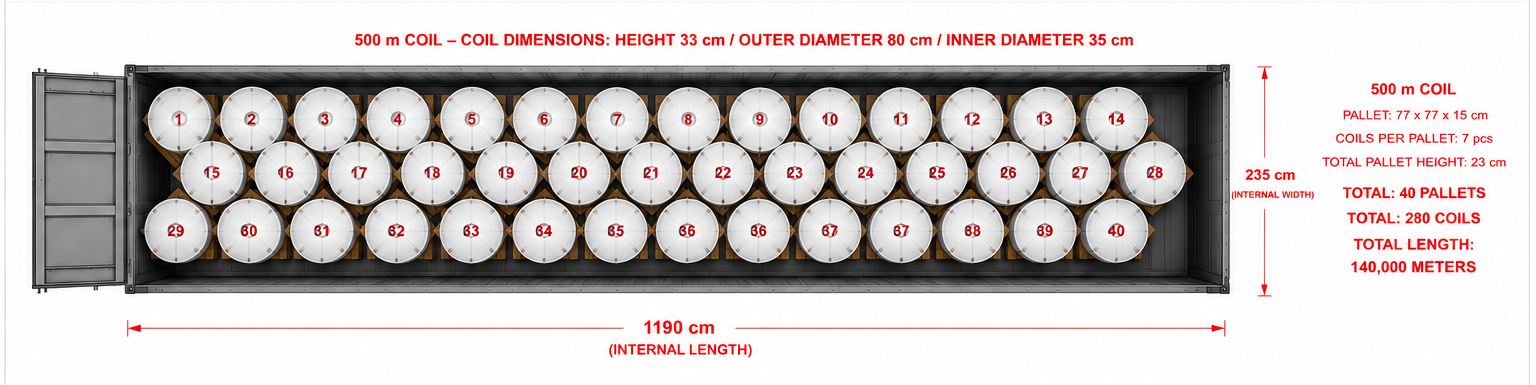

16x2 mm PEX-a PIPES — 500 m COILS — LOADING PLAN (TOP VIEW) — 40 HC CONTAINER / 40 PALLETS / 140,000 METERS
16x2 mm PEX-a PIPES — 500 m COILS — LOADING PLAN (TOP VIEW) — 40 HC CONTAINER / 40 PALLETS / 140,000 METERS
LOAD DISTRIBUTION (TOP VIEW)
Pallets per row (across width)
3 pallets (crisscross)
Rows along length
20 rows
Total pallets
40 pallets
Coils per pallet
7 coils
Total coils
280 coils
Coil length
500 meters
TOTAL LOADED LENGTH
140,000 meters
COIL SPECIFICATIONS
Coil inner diameter
35 cm
Coil outer diameter
80 cm
Coil width (height)
33 cm
Coil length
500 meters
Pipe
16x2 mm PEX-a
Coil weight (500 m x 0.088 kg/m)
44.00 kg
Coils per pallet
7 pcs
PALLET SPECIFICATIONS
Pallet size (L x W x H)
77 x 77 x 15 cm
Coils per pallet
7 pcs
Coil height (per coil)
33 cm
Coils height (7 x 33 cm)
231 cm
Pallet height
15 cm
TOTAL PALLET HEIGHT
246 cm
WEIGHT CALCULATION
Pipe weight per meter
0.088 kg/m
Total pipe length
140,000 m
Total pipe weight
12,320.00 kg
Coil weight (500 m x 0.088 kg/m)
44.00 kg
Pallet weight (7 coils x 44.00 kg)
308.00 kg
Pallet weight (pallet only)
7.00 kg
TOTAL NET WEIGHT
12,320.00 kg
Estimated packaging (stretch)
≈ 360 kg
TOTAL GROSS WEIGHT
≈ 12,680 – 13,000 kg
SUMMARY
Total pallets
40 pallets
Total coils
280 coils
Coil length
500 meters
Total loaded length
140,000 meters
Container internal length
1190 cm
Container internal width
235 cm
Container internal height
260 cm
TOTAL PALLET HEIGHT
246 cm
PACKAGING OPTIONS (WRAPPING)
BLACK STRETCH
black stretch pallet photo
WHITE STRETCH
white stretch pallet photo
CLEAR STRETCH
clear stretch pallet photo
CLEAR STRETCH + BAG
clear stretch + bag photo
KARTON KUTU + ŞEFFAF STRETCH (SADE)
carton box photo
NOTES
  • Loading method: Crisscross (diagonal) packing – 3 pallets across width.
  • Loading capacity: 40 pallets (20 rows along length).
  • Each pallet contains 7 coils of 500 meters.
  • Total loaded length: 140,000 meters of 16x2 mm PEX-a pipes.
  • All dimensions are approximate and may vary slightly depending on production tolerances.
LOADING PHOTOS

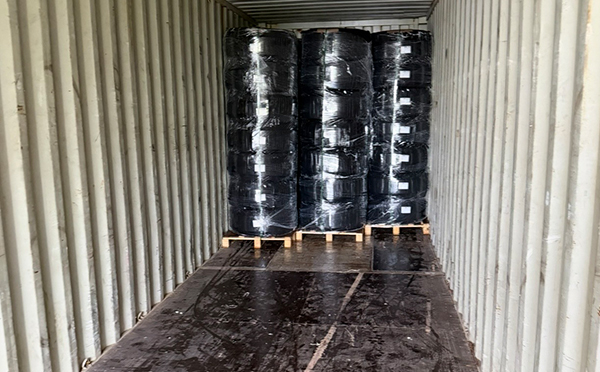

loading photo 1 — container interior
LOADED PALLETS — DOOR VIEW
