Pert Pipe

MODUS PERT PIPE SYSTEM

Made with Original LG Type 2 Raw Material – Durable, Flexible and Long-Lasting Solution

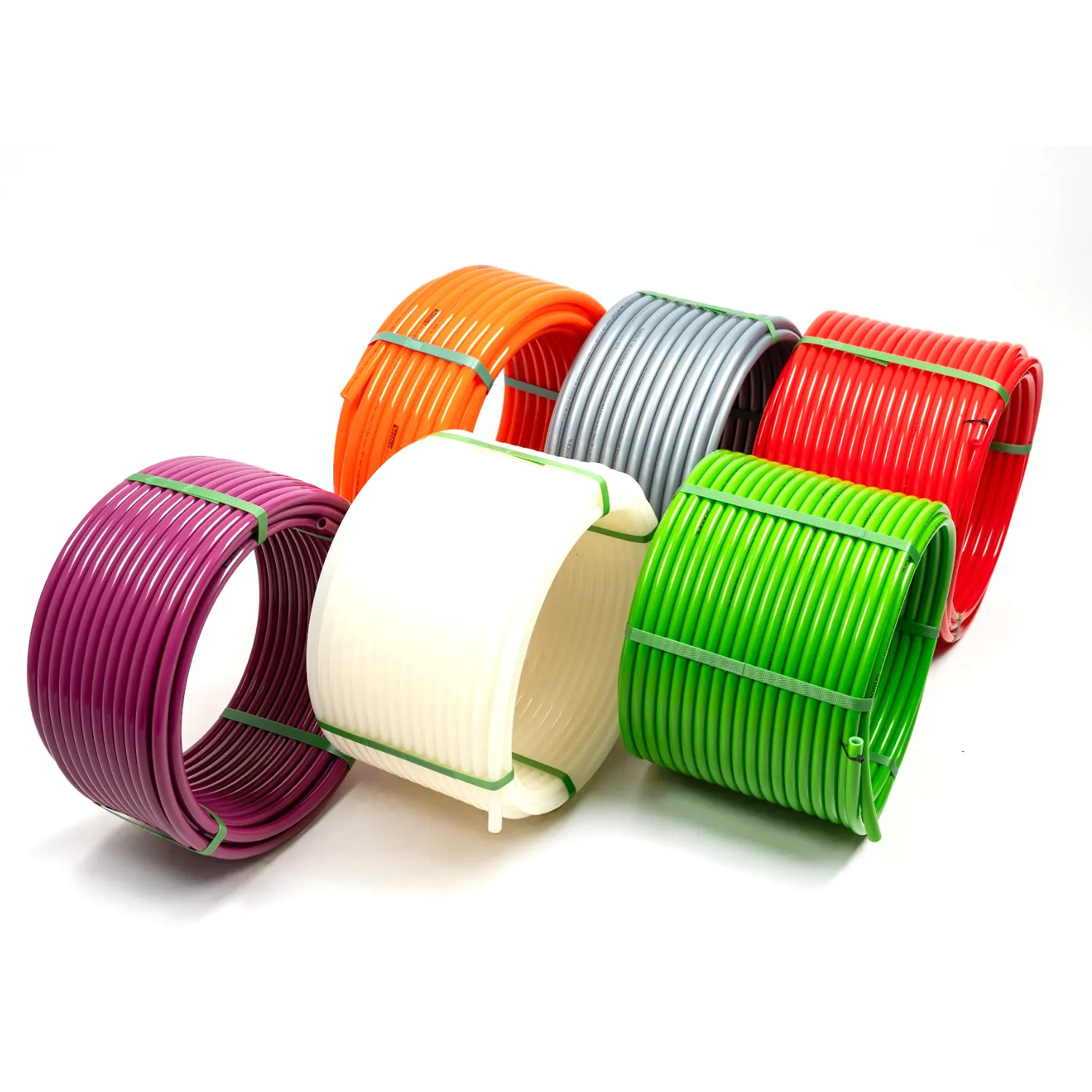

Modus PERT pipes are manufactured using high-quality LG Chem Type 2 raw materials, with a special formulation that provides superior flexibility, thermal resistance, and longevity. This special production structure ensures excellent flow performance, energy efficiency, and years of trouble-free operation in heating and cooling systems.

Thanks to the thick oxygen barrier layer, sourced from Evasin Taiwan, our products completely eliminate the risk of corrosion due to oxygen diffusion on metal components. Modus PERT pipes are manufactured in a 3-layer (PERT / Adhesive / EVOH) or 5-layer (PERT / Adhesive / EVOH / Adhesive / PERT) structure.

Technical Specifications

Feature	Value
Raw materials	LG Chem Type 2 (Original Korean production)
Building Type	3 Layer (PERT / Adhesive / EVOH) or 5 Layer (PERT / Adhesive / EVOH / Adhesive / PERT)
Diameter Ranges	Ø16, Ø17, Ø20, Ø25, Ø32, Ø40 mm
Coil Lengths	25m – 600m
Working Temperature	Continuous 90 °C / Max. 95 °C
Working Pressure	6 bar @ 95 °C / 10 bar @ 20 °C
Oxygen Barrier	EVOH (150–200 micron, Taiwan Evasin)
Standards	EN ISO 22391 / DIN 4726
Certification	TSE Certified, KIWΑ Oxygen Impermeability Test Report
Color Options	Red, Metallic Gray, Orange, Green, Purple, Clear
Covered Option	Yes (Suitable for outdoor and underground applications)
Production System	ISO 9001 Quality Management System

Advantages

- High temperature and pressure resistant structure (continuous use up to 95 °C)
- Easy installation thanks to its excellent flexibility and form retention properties
- Complete protection against oxygen diffusion, preventing corrosion on metal equipment
- Structure resistant to fracture and deformation
- Aesthetic appearance and ease of system separation with wide color options
- Smooth inner surface ensures low pressure loss and quiet flow
- Extra protection in the outdoor environment with the cased version
- High production precision, full dimensional stability and long-lasting performance

Areas of Use

- Underfloor heating and cooling systems
- Radiator connection lines
- Hot and cold water installations
- Central heating and cooling systems
- Industrial liquid transportation lines

Quality and Certification

All Modus PERT pipes are meticulously inspected at every stage of production under the ISO 9001 quality management system. Each production batch undergoes tests for density, tensile strength, hydrostatic pressure resistance, thermal stability, and oxygen permeability. Our products are fully compliant with EN ISO 22391 and DIN 4726 standards, are approved by the Turkish Standards Institution (TSE), and hold a Kiwa oxygen permeability test report. Furthermore, they are certified for safe use in drinking water.

Conclusion

Modus PERT piping systems offer the most reliable solution in modern plumbing technologies, combining flexibility, durability, and aesthetics. The combination of original LG Type 2 raw materials, Evasin oxygen barriers, and Modus manufacturing quality ensures maximum performance and longevity in heating and cooling systems.

Modus PERT – Flexible Strength for Every System.
